Product Details:
|
| Abrasive: | Aluminium Oxide SA | Color: | Black |
|---|---|---|---|
| Hardness: | R | Max Working Speed: | 80 M/S |
| Grit Size: | 46#,60# | Iterm NO.: | FSC1251016 |
| Application: | Ferrous Metal And Stainless Steel Cutting | Bonding Agent: | Resin Bonded |
| Arbor Size: | 5/8 In | Disc Type: | Flat Type |
| Highlight: | grassland 5 inch abrasive cutting discs,125MM abrasive cutting discs,OEM abrasive discs for metal |
||

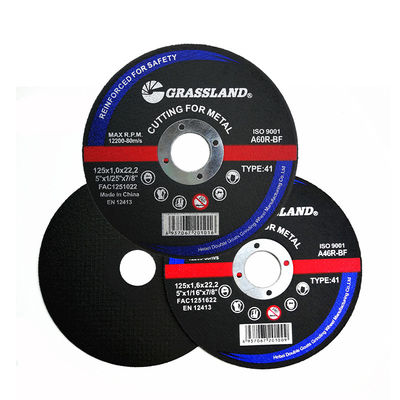

Grassland OEM Cutting Disk Inox 5 inch 125*1.2*22 for metal
Products Descriptions:
Conforms to EN 12413.
Diameter: 125mm ( 5" )
Thickness: 1.0mm
Bore Size: 16 OR 22 mm
Maximum Safe Speed: 12250 R.P.M. / 80M/S
Free of iron, sulphur & chlorine
Fast, straight cutting & long life
1.2mm thin stainless steel
Thin Discs with a 1.2mm thickness permit fine cutting where necessary on stainless steel and high grade metals,extremely fast cutting with sharpness ,minimal vibration for more comfortable working,
As an abrasive cutting disc designed for use with 125mm / 5 inch angle grinders. The INOX disc provides fast, precise cuts in stainless steel with minimum friction, preventing hot corrosion.
GRASSLAND 125×1 mm cutting wheel is a special type of accessories for small angle grinders with help of which different metals and cast iron can be cut. This disc is also used when working with plastic. The peculiar feature of these accessories is that the disc has a double fiberglass net, which increases durability and provides load resistance.
| Cutting wheel information: | |||
| Product Name | 125 mm Thin cutting disc | Abrasive | Aluminum oxide SA |
| Hardness | R Grade | Net Standard | Reinforced fiberglass |
| Max working speed |
80 m/s |
OEM Service | Acceptable |
| R.P.M | 12250 | Package |
Normal Kraft Carton and Pallet |
| Grit size | 46#,60# | HS Code | 68042210 |
|
Certificate |
MPA EN12413,ISO9001 |
Loading Port | Tianjin or else |
--Ultra thin Cutting disks for Metal&stainless steel
| Description of goods | Item No | Specification | Unit | PCS/CTN | N.W./G.W.(KGS) | CARTON SIZE(CM) |
| Flat cutting disc for inox/Alu 80m/s | FSC0751009 | T41-75X1.0X9.5MM | PC | 800 | 9/10 | 34*17*17 |
| FSC0751695 | T41-75X1.6X9.5MM | PC | 800 | 14/15 | 34*20*17 | |
| FSC1001016 | T41-100X1.0X16MM | PC | 400 | 8.5/9.5 | 22*22*15.7 | |
| FSC1002016 | T41-100X2.0X16MM | PC | 400 | 15/16 | 29.7*22*22 | |
| FSC1151022 | T41-115X1.0X22.2MM | PC | 400 | 11/12 | 24.5*24.5*15.7 | |
| FSC1151622 | T41-115X1.6X22.2MM | PC | 400 | 14/15 | 24.5*24.5*19.2 | |
| FSC1152022 | T41-115X2.0X22.2MM | PC | 200 | 9.5/10.5 | 24.5*24.5*13.2 | |
| FSC1251022 | T41-125X1.0X22.2MM | PC | 400 | 13/14 | 26.5*25.6*15.7 | |
| FSC1251622 | T41-125X1.6X22.2MM | PC | 400 | 17/18 | 26.5*25.6*19.2 | |
| FSC1252022 | T41-125X2.0X22.2MM | PC | 200 | 10.5/11.5 | 26.5*26.5*13.2 | |
| FSC1501622 | T41-150X1.6X22.2MM | PC | 200 | 12/13 | 32*32*11.7 | |
| FSC1502022 | T41-150X2.0X22.2MM | PC | 200 | 16.5/17.5 | 32*32*13.2 | |
| FSC1801622 | T41-180X1.6X22.2MM | PC | 200 | 20/21 | 37.5*19*22.7 | |
| FSC1802022 | T41-180X2.0X22.2MM | PC | 100 | 10.5/11 | 37.5*19*13.2 | |
| FSC2301622 | T41-230X1.6X22.2MM | PC | 50 | 8/9 | 24*24*11.7 | |
| FSC2302022 | T41-230X2.0X22.2MM | PC | 100 | 18.5/19.5 | 24*24*25.7 |
---Depressed grinding wheels for inox and metal
| Description of goods | Item No | Specification | Unit | PCS/CTN | N.W./G.W.(KGS) | CARTON SIZE(CM) |
| Depressed grinding disc for inox 80m/s | DSG1004016 | T27-100X4.0X16MM | PC | 200 | 14/15 | 21*21*25 |
| DSG1006016 | T27-100X6.0X16MM | PC | 200 | 22/23 | 22*22*35.7 | |
| DSG1154022 | T27-115X4.0X22.2MM | PC | 100 | 9.5/10.5 | 24.5*24.5*14.2 | |
| DSG1156022 | T27-115X6.0X22.2MM | PC | 100 | 15/16 | 24.5*24.5*19.2 | |
| DSG1157022 | T27-115X7.0X22.2MM | PC | 100 | 16.5/17.5 | 24.5*24.5*22.2 | |
| DSG1158022 | T27-115X8.0X22.2MM | PC | 100 | 18.5/19.5 | 24.5*24.5*24 | |
| DSG1254022 | T27-125X4.0X22.2MM | PC | 100 | 11.5/12.5 | 26.5*26.5*14.2 | |
| DSG1256022 | T27-125X6.0X22.2MM | PC | 100 | 17/18 | 26.5*26.5*19.2 | |
| DSG1257022 | T27-125X7.0X22.2MM | PC | 100 | 18.5/19.5 | 26.5*26.5*22 | |
| DSG1258022 | T27-125X8.0X22.2MM | PC | 100 | 23/22 | 26.5*26.5*24 | |
| DSG1504022 | T27-150X4.0X22.2MM | PC | 100 | 18.5/19.5 | 32*32*14.2 | |
| DSG1506022 | T27-150X6.0X22.2MM | PC | 100 | 24/25 | 32*32*19.2 | |
| DSG1507022 | T27-150X7.0X22.2MM | PC | 60 | 27/28 | 32*32*13.5 | |
| DSG1508022 | T27-150X8.0X22.2MM | PC | 60 | 20/19 | 32*32*15.5 | |
| DSG1804022 | T27-180X4.0X22.2MM | PC | 60 | 14/15 | 37*19*17.7 | |
| DSG1806022 | T27-180X6.0X22.2MM | PC | 60 | 22/23 | 37.5*19*22.7 | |
| DSG1807022 | T27-180X7.0X22.2MM | PC | 30 | 12/13 | 37.5*19*13.5 | |
| DSG1808022 | T27-180X8.0X22.2MM | PC | 60 | 28/29 | 40*30*20 | |
| DSG2304022 | T27-230X4.0X22.2MM | PC | 30 | 10.5/11.5 | 24*24*17.7 | |
| DSG2306022 | T27-230X6.0X22.2MM | PC | 30 | 17/18 | 24*24*22.7 | |
| DSG2307022 | T27-230X7.0X22.2MM | PC | 30 | 19/20 | 24*24*27 | |
| DSG2308022 | T27-230X8.0X22.2MM | PC | 30 | 22/23 | 25*24.5*30 |
