Product Details:
|
| Abrasive: | Aluminium Oxide SA | Color: | Black |
|---|---|---|---|
| Hardness: | R | Max Working Speed: | 80 M/S |
| Grit Size: | 46#,60# | Iterm NO.: | FSC2302522 |
| Application: | Ferrous Metal And Inox | Bonding Agent: | Resin Bonded |
| Arbor Size: | 7/8 In | Disc Type: | Flat Type |
| High Light: | 230x2.5mm angle grinder abrasive wheel,MPA angle grinder abrasive wheel,230mm abrasive discs for metal |
||

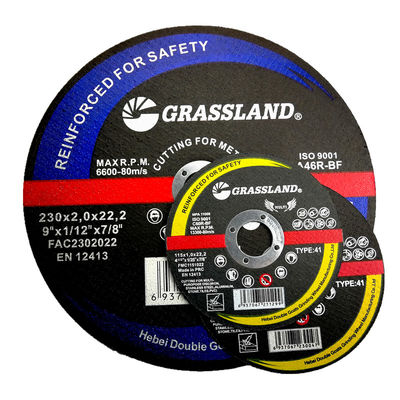

9 inch Abrasive cutting disc GRASSLAD 230x2,5 mm cut off wheel for metal
Products Descriptions:
Technical Specification:
Size - 230mm x 2.5mm x 22mm
RPM - 6650rpm 80 m/s
Grade - A60RBF
F41/F42 Flat/DPC - F41 (FLAT)
EN12413
Our Grassland Cutting Disc is manufactured using Aluminium Oxide abrasive grit with fibreglass reinforcing and resin bonded, made to cut through most steel with reliability. Compatible for use with angle grinders,produced in the state of the art ISO 9001:2000 certified manufacturing facility, with stringent process controls and final product. Better still, it is Inox quality rated, certified to Germany standards and manufactured in accordance to ISO and European EN12413 Safety Standards.
These thinner discs will sheet metal faster and as such, minimise discoloration and leave less work in the clean-up of the surface of the metal once you’re done.
Application
They are commonly used in building, shipbuilding, metal, foundry, engineering, chemical and other industries as well as in smaller workshops. They can be used on portable electrically or pneumatically driven portable horizontal/vertical spindle grinders.
| Cutting wheel information: | |||
| Product Name |
9 stainless steel cutting discs |
Abrasive | Aluminum oxide SA |
| Hardness | R Grade | Net Standard | Reinforced fiberglass |
| Max working speed |
80 m/s |
OEM Service | Acceptable |
| R.P.M | 6650 | Package |
Kraft Carton and Pallet |
| Grit size | 46#,60# | HS Code | 68042210 |
|
Certificate |
MPA EN12413,ISO9001 |
Loading Port | Tianjin or else |
-More size for Inox stainless steel slitting cutting discs and grinding wheels
| Description of goods | Item No | Specification | Unit | PCS/CTN | N.W./G.W.(KGS) | CARTON SIZE(CM) |
| Flat cutting disc for inox 80m/s | FSC3003225 | T41-300X3.2X25.4MM | PC | 25 | 13/14 | 30*30*9.5 |
| FSC3004025 | T41-300X4.0X25.4MM | PC | 25 | 14/15 | 30*30*11 | |
| FSC3503225 | T41-350X3.2X25.4MM | PC | 25 | 17/18 | 35.5*35.5*9.5 | |
| FSC3504025 | T41-350X4.0X25.4MM | PC | 20 | 17/18 | 35.5*35.5*9.5 | |
| FSC4003225 | T41-400X3.2X25.4MM | PC | 25 | 22/23 | 40*40*9.5 | |
| FSC4004025 | T41-400X4.0X25.4MM | PC | 20 | 22/23 | 40*40*9.5 |
| Description of goods | Item No | Specification | Unit | PCS/CTN | N.W./G.W.(KGS) | CARTON SIZE(CM) |
| Depressed grinding disc for metal 80m/s | DAG1004016 | T27-100X4.0X16MM | PC | 200 | 14/15 | 21*21*25 |
| DAG1006016 | T27-100X6.0X16MM | PC | 200 | 21/22 | 35.7*22*22 | |
| DAG1154022 | T27-115X4.0X22.2MM | PC | 100 | 9.5/10.5 | 24.5*24.5*14.2 | |
| DAG1156022 | T27-115X6.0X22.2MM | PC | 100 | 15/16 | 24.5*24.5*19.2 | |
| DAG1157022 | T27-115X7.0X22.2MM | PC | 100 | 17.5/16.5 | 24.5*24.5*22.2 | |
| DAG1158022 | T27-115X8.0X22.2MM | PC | 100 | 19.5/18.5 | 24.5*24.5*25.2 | |
| DAG1254022 | T27-125X4.0X22.2MM | PC | 100 | 11.5/12.5 | 26.5*26.5*14.2 | |
| DAG1256022 | T27-125X6.0X22.2MM | PC | 100 | 17.5/18.5 | 26.5*26.5*19.2 | |
| DAG1257022 | T27-125X7.0X22.2MM | PC | 100 | 20/19 | 26.5*26.5*22.2 | |
| DAG1258022 | T27-125X8.0X22.2MM | PC | 100 | 23/22 | 26.5*26.5*25.2 | |
| DAG1504022 | T27-150X4.0X22.2MM | PC | 100 | 18.5/19.5 | 32*32*14.2 | |
| DAG1506022 | T27-150X6.0X22.2MM | PC | 100 | 12/13 | 32*32*19.2 | |
| DAG1507022 | T27-150X7.0X22.2MM | PC | 60 | 18/17 | 32*32*13.7 | |
| DAG1508022 | T27-150X8.0X22.2MM | PC | 60 | 20/19 | 32*32*15.2 | |
| DAG1804022 | T27-180X4.0X22.2MM | PC | 60 | 14.5/15.5 | 37.5*19*17.7 | |
| DAG1806022 | T27-180X6.0X22.2MM | PC | 60 | 22/23 | 37.5*25*19 | |
| DAG1807022 | T27-180X7.0X22.2MM | PC | 30 | 11/12 | 37.5*19*13.5 | |
| DAG1808022 | T27-180X8.0X22.2MM | PC | 60 | 28/29 | 37.5*19*29.7 | |
| DAG2304022 | T27-230X4.0X22.2MM | PC | 30 | 10.5/11.5 | 24*24*17.7 | |
| DAG2306022 | T27-230X6.0X22.2MM | PC | 30 | 18/19 | 24*24*22.7 | |
| DAG2307022 | T27-230X7.0X22.2MM | PC | 30 | 19/20 | 24*24*26.7 | |
| DAG2308022 | T27-230X8.0X22.2MM | PC | 30 | 21/22 | 25*24.5*29.7 |
