Product Details:
|
| Abrasive: | Aluminium Oxide | Color: | Black |
|---|---|---|---|
| Hardness: | R | Max Working Speed: | 80 M/S |
| Grit Size: | 24#,30#,46#,60# | Iterm NO.: | FAC1003016 |
| Application: | Ferrous Metal And Steel Cutting | Bonding Agent: | Resin Bonded |
| Arbor Size: | 5/8 In | Disc Type: | Depressed Center Type |
| High Light: | Bore 16mm Metal Grinding Discs,100mm dia Metal Grinding Discs,ISO Metal Grinding Discs |
||

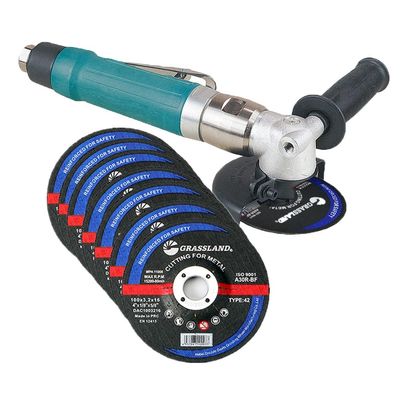

100x3x16 A30RBF FLAT CUTTING DISC T41
• Manufactured to assure operator safety and optimum performance. For use with all portable angle grinders.
■ For use on steel, Metal and non-ferrous materials
■ Iron, sulphur and chlorine free.
■ Not to be used for wet cutting.
■ Cutting discs must never be used for grinding and must always be presented to the work piece at an angle of 90°.
• Abrasive Material Aluminium Oxide
• Bore 16mm
• Disc Diameter 100mm
• Bond Type Resinoid Reinforced (BF)
• Optimum angle for use 90°
- Steel cutting disc.
- Outer diameter 100mm.
- Inner bore diameter 22.23mm.
- Thickness 3.2mm.
- Provides fast and smooth cutting.
- Appropriate for hand-held angle grinders.
- Maximum circumferential speed: 80 m/s (depending on rpm and disc diameter)
- Max 15300 rpm.
| Cutting wheel information: | |||
| Product Name | 100mm metal grinding discs | Abrasive | Aluminum oxide |
| Hardness | R Grade | Net Standard | Reinforced fiberglass |
| Max working speed |
80 m/s
|
OEM Service | Acceptable |
| R.P.M | 15300 | Package |
Kraft Carton and Pallet
|
| Grit size | 24#,30#,46#,60# | HS Code | 68042210 |
|
Certificate
|
MPA EN12413,ISO9001
|
Loading Port | Tianjin or else |
| Description of goods | Item No | Specification | Unit | PCS/CTN | N.W./G.W.(KGS) | CARTON SIZE(CM) |
| Depressed Cutting disc for metal 80m/s | DAC1002516 | T42-100X2.5X16MM | PC | 200 | 8/9 | 22*22*20.2 |
| DAC1152522 | T42-115X2.5X22.2MM | PC | 200 | 12/13 | 24.5*24.5*20.2 | |
| DAC1252522 | T42-125X2.5X22.2MM | PC | 200 | 14/15 | 26.5*26.5*20.2 | |
| DAC1502522 | T42-150X2.5X22.2MM | PC | 150 | 15/16 | 34*26*17 | |
| DAC1802522 | T42-180X2.5X22.2MM | PC | 150 | 19.5/20.5 | 40*20*26 | |
| DAC2302522 | T42-230X2.5X22.2MM | PC | 50 | 11.5/12.5 | 24*24*20.7 | |
| DAC2502522 | T42-250X2.5X22.2MM | PC | 50 | 11.5/12.5 | 25*25*19 | |
| Depressed Cutting disc for metal 80m/s | DAC1003216 | T42-100X3.2X16MM | PC | 400 | 21.5/20.5 | 22X22X19.7 |
| DAC1153222 | T42-115X3.2X22.2MM | PC | 200 | 14/15 | 24.5*24.5*22.2 | |
| DAC1253222 | T42-125X3.2X22.2MM | PC | 200 | 16/17 | 26.5*26.5*22.2 | |
| DAC1503222 | T42-150X3.2X22.2MM | PC | 200 | 25/26 | 32*32*22.2 | |
| DAC1803222 | T42-180X3.2X22.2MM | PC | 100 | 18/19 | 37.5*19*23.7 | |
| DAC2303222 | T42-230X3.2X22.2MM | PC | 50 | 14/15 | 24*24*23.7 | |
| DAC2503222 | T42-250X3.2X22.2MM | PC | 50 | 17.5/16.5 | 25*25*21 |
