7" X 1/4" X 7/8" T27 Depressed Center Steel Grinding Wheel

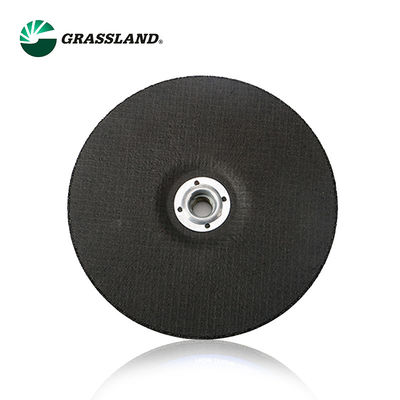

Large Image : 7" X 1/4" X 7/8" T27 Depressed Center Steel Grinding Wheel

Product Details:

Place of Origin:	China
Brand Name:	JZX
Certification:	ISO9001，ISO14001 and MPA EN12413
Model Number:	180X6.0X22.23

Payment & Shipping Terms:

Minimum Order Quantity:	10000
Price:	US$0.7-0.8 per piece
Packaging Details:	shrink wrap-inner box-carton-enhanced pallet
Delivery Time:	30-60 Days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	300 thousand PCS per day

Contact Now

7" X 1/4" X 7/8" T27 Depressed Center Steel Grinding Wheel

Description

Abrasive:	Aluminium Oxide And Corundum	Color:	Black
Hardness:	R	Max Working Speed:	80 M/S
Grit Size:	24#	Iterm NO.:	JDAG1806022
Application:	Ferrous Metal And All Steel Metal Cutting	Bonding Agent:	Resin
Arbor Size:	7/8 In	Disc Type:	Depressed Type
Ohter:	Optimum Angle For Use 90°
High Light:	Depressed Center steel grinding wheel , T27 steel grinding wheel , 180X6.0X22.23 steel grinding wheel

JZX 7" X 1/4" X 7/8" T27 Depressed Center Steel Aluminium Grinding Wheel

Description

SPECIFICATION

• Maximum circumferential speed: 80 m/s

• Diameter: Ø 180mm / 7"

• Bore diameter: Ø 22 mm / 7/8"

• Thickness: 6.0 mm

• Material that can be processed: Metal

• Product type: Grinding disc

7 inch 180mmType 27 Premium Grinding Wheels are made to meet both ANSI and EN Standards. Designed with the operator in mind, these grinding wheels are formulated for fast stock removal balanced with long service life. Manufactured with multiple layers of fiberglass, Bakelite resin and European Aluminum Oxide grain.May be used on a variety of substrates such as carbon steel and stainless steel
Use with tools and accessories designed for depressed center grinding wheels

APPLICATIONS

Surface grinding, work on weld seams, fillet weld grinding, grouting, chamfering, deburringls.

Grinding wheels and cut-off wheels are covered in abrasive grit and used for grinding, cutting, and machining applications. Grinding wheels remove material from metal, glass, wood, brick, or concrete. Cut-off wheels cut or notch these surfaces. Wheels are used with power tools and industrial machines such as angle grinders or bench grinders.

Cutting wheel information:
Product Name	Grind Wheel 7x1/4x7/8	Abrasive	Aluminum oxide and corundum
Hardness	R Grade	Net Grade	Reinforced fiberglass
Max working speed	80 m/s	OEM Service	Acceptable
R.P.M	8500	Package	Kraft Carton and Pallet
Grit size	46#,24#	HS Code	68042210
Certificate	MPA EN12413,ISO9001	Loading Port	Tianjin or else

1.Super thin cutting disc for metal

Description of goods	Item No	Specification	Unit	PCS/CTN	N.W./G.W.(KGS)	CARTON SIZE(CM)
Flat cutting disc for metal 80m/s	FAC0751095	T41-75X1.0X9.5MM	PC	800	9/10	341717
	FAC0751695	T41-75X1.6X9.5MM	PC	800	14/15	342017
	FAC1001016	T41-100X1.0X16MM	PC	400	8.5/9.5	222215.7
	FAC1002016	T42-100X2.0X16MM	PC	400	15/16	27.72222
	FAC1151022	T41-115X1.0X22.2MM	PC	400	11/12	24.524.515.7
	FAC1151622	T41-115X1.6X22.2MM	PC	400	14/15	24.524.519.2
	FAC1152022	T41-115X2.0X22.2MM	PC	200	9.5/10.5	24.524.513.2
	FAC1251022	T41-125X1.0X22.2MM	PC	400	13/14	26.525.615.7
	FAC1251622	T41-125X1.6X22.2MM	PC	400	17/18	26.525.619.2
	FAC1252022	T41-125X2.0X22.2MM	PC	200	10.5/11.5	26.526.513.2
	FAC1501622	T41-150X1.6X22.2MM	PC	200	12/13	323211.7
	FAC1502022	T41-150X2.0X22.2MM	PC	200	16.5/17.5	323213.2
	FAC1801622	T41-180X1.6X22.2MM	PC	200	20/21	37.51922.7
	FAC1802022	T41-180X2.0X22.2MM	PC	100	10.5/11	37.51913.2
	FAC2301622	T41-230X1.6X22.2MM	PC	50	8/9	242411.7
	FAC2302022	T41-230X2.0X22.2MM	PC	100	18.5/19.5	242425.7

2-General purpose cutting discs

Flat cutting disc for Mulit 80m/s	FMC0751009	T41-75X1.0X9.5MM	PC	800	9/10	341717	10,000
	FMC0751695	T41-75X1.6X9.5MM	PC	800	14/15	342017	10,000
	FMC1001016	T41-100X1.0X16MM	PC	400	8.5/9.5	222215.7	10,000
	FMC1002016	T41-100X2.0X16MM	PC	400	15/16	29.72222	10,000
	FMC1151022	T41-115X1.0X22.2MM	PC	400	11/12	24.524.515.7	10,000
	FMC1151622	T41-115X1.6X22.2MM	PC	400	14/15	24.524.519.2	10,000
	FMC1152022	T41-115X2.0X22.2MM	PC	200	9.5/10.5	24.524.513.2	10,000
	FMC1251022	T41-125X1.0X22.2MM	PC	400	13/14	26.525.615.7	10,000
	FMC1251622	T41-125X1.6X22.2MM	PC	400	17/18	26.525.619.2	10,000
	FMC1252022	T41-125X2.0X22.2MM	PC	200	10.5/11.5	26.526.513.2	10,000
	FMC1501622	T41-150X1.6X22.2MM	PC	200	12/13	323211.7	10,000
	FMC1502022	T41-150X2.0X22.2MM	PC	200	16.5/17.5	323213.2	10,000
	FMC1801622	T41-180X1.6X22.2MM	PC	200	20/21	37.51922.7	10,000
	FMC1802022	T41-180X2.0X22.2MM	PC	100	10.5/11	37.51913.2	10,000
	FMC2301622	T41-230X1.6X22.2MM	PC	50	8/9	242411.7	10,000
	FMC2302022	T41-230X2.0X22.2MM	PC	100	18.5/19.5	242425.7	10,000

7" X 1/4" X 7/8" T27 Depressed Center Steel Grinding Wheel 0

7" X 1/4" X 7/8" T27 Depressed Center Steel Grinding Wheel 2

7" X 1/4" X 7/8" T27 Depressed Center Steel Grinding Wheel 3
