Product Details:
|
| Abrasive: | Aluminium Oxide And Corundum | Color: | Black |
|---|---|---|---|
| Hardness: | R | Max Working Speed: | 80 M/S |
| Grit Size: | 24# | Iterm NO.: | JDAG1000616 |
| Application: | Ferrous Metal And All Steel Metal Cutting | Bonding Agent: | Resin |
| Arbor Size: | 5/8 In | Disc Type: | Depressed Type |
| High Light: | EN12413 metal cutting discs,T27 metal cutting discs,EN12413 aluminium oxide grinding wheel |
||

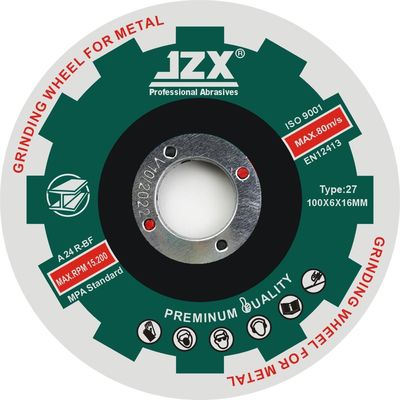

JZX T27-4X1/4X7/8 metal steel grinding disc wheel EN12413
Description
Grinding wheels remove material from metal, glass, wood, brick, or concrete. Cut-off wheels cut or notch these surfaces. Wheels are used with power tools and industrial machines such as angle grinders or bench grinders.
Due to strict criteria in the production and careful selection of materials, grinding wheels Grassland have become grateful brand in the world.
APPLICATIONS
Surface grinding, work on weld seams, fillet weld grinding, grouting, chamfering, deburringls.
| Cutting wheel information: | |||
| Product Name | 4" Metal grinding wheel | Abrasive | Aluminum oxide and corundum |
| Hardness | R Grade | Net Grade | Reinforced fiberglass |
| Max working speed |
80 m/s |
OEM Service | Acceptable |
| R.P.M | 15300 | Package |
Kraft Carton and Pallet
|
| Grit size | 46#,24# | HS Code | 68042210 |
|
Certificate
|
MPA EN12413,ISO9001
|
Loading Port | Tianjin or else |
1.Super thin cutting disc for metal
| Description of goods | Item No | Specification | Unit | PCS/CTN | N.W./G.W.(KGS) | CARTON SIZE(CM) |
| Flat cutting disc for metal 80m/s | FAC0751095 | T41-75X1.0X9.5MM | PC | 800 | 9/10 | 34*17*17 |
| FAC0751695 | T41-75X1.6X9.5MM | PC | 800 | 14/15 | 34*20*17 | |
| FAC1001016 | T41-100X1.0X16MM | PC | 400 | 8.5/9.5 | 22*22*15.7 | |
| FAC1002016 | T42-100X2.0X16MM | PC | 400 | 15/16 | 27.7*22*22 | |
| FAC1151022 | T41-115X1.0X22.2MM | PC | 400 | 11/12 | 24.5*24.5*15.7 | |
| FAC1151622 | T41-115X1.6X22.2MM | PC | 400 | 14/15 | 24.5*24.5*19.2 | |
| FAC1152022 | T41-115X2.0X22.2MM | PC | 200 | 9.5/10.5 | 24.5*24.5*13.2 | |
| FAC1251022 | T41-125X1.0X22.2MM | PC | 400 | 13/14 | 26.5*25.6*15.7 | |
| FAC1251622 | T41-125X1.6X22.2MM | PC | 400 | 17/18 | 26.5*25.6*19.2 | |
| FAC1252022 | T41-125X2.0X22.2MM | PC | 200 | 10.5/11.5 | 26.5*26.5*13.2 | |
| FAC1501622 | T41-150X1.6X22.2MM | PC | 200 | 12/13 | 32*32*11.7 | |
| FAC1502022 | T41-150X2.0X22.2MM | PC | 200 | 16.5/17.5 | 32*32*13.2 | |
| FAC1801622 | T41-180X1.6X22.2MM | PC | 200 | 20/21 | 37.5*19*22.7 | |
| FAC1802022 | T41-180X2.0X22.2MM | PC | 100 | 10.5/11 | 37.5*19*13.2 | |
| FAC2301622 | T41-230X1.6X22.2MM | PC | 50 | 8/9 | 24*24*11.7 | |
| FAC2302022 | T41-230X2.0X22.2MM | PC | 100 | 18.5/19.5 | 24*24*25.7 |
2-Type 27 depressed center grinding discs wheel for stone
| Description of goods | Item No | Specification | Unit | PCS/CTN | N.W./G.W.(KGS) | CARTON SIZE(CM) | MOQ |
| Depressed grinding disc for stone 80m/s | DCG1004016 | T27-100X4.0X16MM | PC | 200 | 13/14 | 21*21*25 | 10,000 |
| DCG1006016 | T27-100X6.0X16MM | PC | 200 | 20/21 | 22*22*35.7 | 10,000 | |
| DCG1154022 | T27-115X4.0X22.2MM | PC | 100 | 9/10 | 24.5*24.5*14.2 | 10,000 | |
| DCG1156022 | T27-115X6.0X22.2MM | PC | 100 | 12.5/13.5 | 24.5*24.5*19.2 | 10,000 | |
| DCG1157022 | T27-115X7.0X22.2MM | PC | 100 | 16.5/15.5 | 24.5*24.5*22 | 10,000 | |
| DCG1158022 | T27-115X8.0X22.2MM | PC | 100 | 18.5/17.5 | 24.5*24.5*24 | 10,000 | |
| DCG1254022 | T27-125X4.0X22.2MM | PC | 100 | 10.5/11.5 | 26.5*26.5*14.2 | 10,000 | |
| DCG1256022 | T27-125X6.0X22.2MM | PC | 100 | 14/15 | 26.5*26.5*19.2 | 10,000 | |
| DCG1257022 | T27-125X7.0X22.2MM | PC | 100 | 19/18 | 26.5*26.5*22 | 10,000 | |
| DCG1258022 | T27-125X8.0X22.2MM | PC | 100 | 22/21 | 26.5*26.5*24 | 10,000 | |
| DCG1504022 | T27-150X4.0X22.2MM | PC | 100 | 17/18 | 32*32*14.2 | 10,000 | |
| DCG1506022 | T27-150X6.0X22.2MM | PC | 100 | 21/22 | 32*32*19.2 | 10,000 | |
| DCG1507022 | T27-150X7.0X22.2MM | PC | 60 | 17/16 | 32*32*13.5 | 10,000 | |
| DCG1508022 | T27-150X8.0X22.2MM | PC | 60 | 19/18 | 32*32*15.5 | 10,000 | |
| DCG1804022 | T27-180X4.0X22.2MM | PC | 60 | 12.5/13.5 | 37*19*17.7 | 10,000 | |
| DCG1806022 | T27-180X6.0X22.2MM | PC | 60 | 18.5/19.5 | 37.5*19*22.7 | 10,000 | |
| DCG1807022 | T27-180X7.0X22.2MM | PC | 30 | 10/11 | 37.5*19*13.5 | 10,000 | |
| DCG1808022 | T27-180X8.0X22.2MM | PC | 60 | 27/28 | 40*30*20 | 10,000 | |
| DCG2304022 | T27-230X4.0X22.2MM | PC | 30 | 9.5/10.5 | 24*24*17.7 | 10,000 | |
| DCG2306022 | T27-230X6.0X22.2MM | PC | 30 | 16/17 | 24*24*22.7 | 10,000 | |
| DCG2307022 | T27-230X7.0X22.2MM | PC | 30 | 18/19 | 24*24*27 | 10,000 | |
| DCG2308022 | T27-230X8.0X22.2MM | PC | 30 | 20/21 | 25*24.5*30 | 10,000 |
