Product Details:
|
| Abrasive: | Aluminium Oxide | Color: | Black |
|---|---|---|---|
| Hardness: | R | Max Working Speed: | 80 M/S |
| Grit Size: | 24#,30# | Iterm NO.: | FAC3552525 |
| Application: | Ferrous Metal Steel And Inox | Bonding Agent: | Resin Bonded |
| Arbor Size: | 1 In | Disc Type: | Flat Cutting Disc |
| Highlight: | 80M/S Chop Saw Cutting Wheel,14 inch Abrasive Cut Off Wheel,A24BF Chop Saw Cutting Wheel |
||

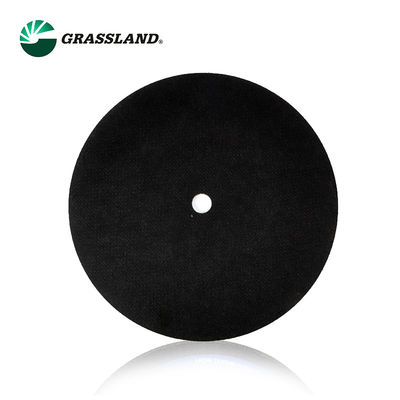

14inch Performance cutting on metal with portable chop saws and stationary saws
Spec: A24BF
R grade of hardness
Diameter: 355x2.5x25.4 --14inch
Hole/Bore: 25.4mm/20MM/32MM
Vmax: 80 m/s
Max RPM: 4400
Above average performance.
Excellent price to performance ratio.
Comfortable and easy to use.
Manufactured according to EN12413.
Conforms to MPA HANNOVER
Grassland wheels are externally reinforced to provide additional side load strength, safety, and unsurpassed performance. We've designed our products from the bottom up to give our customers the performance they deserve.
Two full layers of reinforcing are offered for lower power machines, and light to medium applications where speed of cut is the primary selection criterion
Application: Ferrous metals (structural metal, heavy rebar, channel iron, angle iron, etc)
Fast cut wheel on thicker profile materials such as angle iron, pipe
and rebar
A consistently performing wheel for a variety of cutting applications
| Cutting wheel information: | |||
| Product Name | 355 mm cut-off wheel | Abrasive | premium Aluminum oxide |
| Hardness | R Grade | Net Standard | Reinforced fiberglass |
| Max working speed |
80 m/s |
OEM Service | Acceptable |
| R.P.M | 4400 | Package |
Kraft Carton and Pallet |
| Grit size | 24#,30#, | HS Code | 68042210 |
|
Certificate |
MPA EN12413,ISO9001 |
Loading Port | Tianjin or else |
Other items you may be interested as below,
| Description of goods | Item No | Specification | Unit | PCS/CTN | N.W./G.W.(KGS) | CARTON SIZE(CM) | MOQ |
| Depressed Cutting disc for stone 80m/s | DCC1002516 | T42-100X2.5X16MM | PC | 200 | 7/8 | 22*22*20.2 | 10,000 |
| DCC1152522 | T42-115X2.5X22.2MM | PC | 200 | 11/12 | 24.5*24.5*20.2 | 10,000 | |
| DCC1252522 | T42-125X2.5X22.2MM | PC | 200 | 13/14 | 26.5*26.5*20.2 | 10,000 | |
| DCC1502522 | T42-150X2.5X22.2MM | PC | 150 | 14/15 | 34*26*17 | 10,000 | |
| DCC1802522 | T42-180X2.5X22.2MM | PC | 150 | 20/21 | 40*20*26 | 10,000 | |
| DCC2302522 | T42-230X2.5X22.2MM | PC | 50 | 10/11 | 24*24*20.7 | 10,000 | |
| DCC2502522 | T42-250X2.5X22.2MM | PC | 50 | 10/11 | 25*25*19 | 10,000 | |
| Depressed Cutting disc for stone 80m/s | DCC1003316 | T42-100X3.2X16MM | PC | 400 | 20/21 | 22X22X37.7 | 10,000 |
| DCC1153222 | T42-115X3.2X22.2MM | PC | 200 | 13/14 | 24.5*24.5*22.2 | 10,000 | |
| DCC1253222 | T42-125X3.2X22.2MM | PC | 200 | 15/16 | 26.5*26.5*22.2 | 10,000 | |
| DCC1503222 | T42-150X3.2X22.2MM | PC | 200 | 24/25 | 32*32*22.2 | 10,000 | |
| DCC1803222 | T42-180X3.2X22.2MM | PC | 100 | 17/18 | 37.5*19*23.7 | 10,000 | |
| DCC2303222 | T42-230X3.2X22.2MM | PC | 50 | 13/14 | 24*24*23.7 | 10,000 | |
| DCC2503222 | T42-250X3.2X22.2MM | PC | 50 | 16/15 | 25*25*21 | 10,000 |
