Product Details:
|
| Abrasive: | Aluminium Oxide SA | Color: | Black |
|---|---|---|---|
| Hardness: | R | Max Working Speed: | 80M/S |
| Grit Size: | 30#,46#,60# | Iterm NO.: | FSC2301922 |
| Application: | Ferrous Metal And Stainless Steel Cutting | Bonding Agent: | Resin Bonded |
| Arbor Size: | 7/8 In | Disc Type: | Flat Type |
| High Light: | 230x2x22.2 aluminum cut off wheel,230mm aluminum cut off wheel,80M/S aluminum cut off wheel |
||

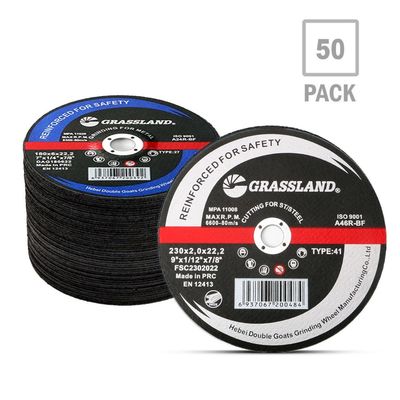

Best Cut Off Wheel For Stainless Steel Cutting Disk Metal 230x2x22.2
Products Descriptions:
230mm x 1.9mm x 22.2mm Bore (9" x 5/64" x 7/8")
These thin profile cutting discs are ideal for accurate fast metal cutting.
Cuts mild and stainless steel. Grade A60TBF
EN12413 ISO9001 CE Approved.
Max speed 6,600 RPM 80 M/SEC
Grassland Metal Inox Thin Cutting Discs enable a very clean quick cut to be achieved with little effort.Manufactured without addition of ferrous, chlorinated or sulphurous fillers,Grassland discs have been developed for precision cutting sheet metal and with strengthened core stability for reduced vibration. Suitable for use on a wide variety of metal cutting applications including Stainless Steel, Sheet metal, Mild Steel & High Grade Steel.Grain type - CORUNDUM, binder - synthetic resins based on aldehyde, design - STRAIGHT, max. Working speed - 80 m / s, max. Permissible speed - 6650rpm, FOR INCREASING STRENGTH ARMED WITH A TWO-LAYER GLASS TEXTILE INSERT! GRASSLAND INDUSTRY DISCS COMPLY WITH EN 12413 AND MPA homologation!
Applications:
Car bodywork, tank construction, steel cable, thin-walled profile sections and pipes made from stainless steel, non-ferrous metals and composite materials
| Cutting wheel information: | |||
| Product Name | Cutting disc stainless steel | Abrasive | Monocrystalline aluminium oxide SA |
| Hardness | R Grade | Net Standard | Reinforced fiberglass mesh |
| Max working speed |
80 m/s |
OEM Service | Welcomed |
| R.P.M | 6650 | Package |
Normal Kraft Carton and Pallet |
| Grit size | 46#,60# | HS Code | 68042210 |
|
Certificate |
MPA EN12413,ISO9001 |
Loading Port | Tianjin or else |
--Multi purpose Cutting disks for Metal & stainless steel
| Description of goods | Item No | Specification | Unit | PCS/CTN | N.W./G.W.(KGS) | CARTON SIZE(CM) |
| Flat cutting disc for Mulit 80m/s | FMC0751009 | T41-75X1.0X9.5MM | PC | 800 | 9/10 | 34*17*17 |
| FMC0751695 | T41-75X1.6X9.5MM | PC | 800 | 14/15 | 34*20*17 | |
| FMC1001016 | T41-100X1.0X16MM | PC | 400 | 8.5/9.5 | 22*22*15.7 | |
| FMC1002016 | T41-100X2.0X16MM | PC | 400 | 15/16 | 29.7*22*22 | |
| FMC1151022 | T41-115X1.0X22.2MM | PC | 400 | 11/12 | 24.5*24.5*15.7 | |
| FMC1151622 | T41-115X1.6X22.2MM | PC | 400 | 14/15 | 24.5*24.5*19.2 | |
| FMC1152022 | T41-115X2.0X22.2MM | PC | 200 | 9.5/10.5 | 24.5*24.5*13.2 | |
| FMC1251022 | T41-125X1.0X22.2MM | PC | 400 | 13/14 | 26.5*25.6*15.7 | |
| FMC1251622 | T41-125X1.6X22.2MM | PC | 400 | 17/18 | 26.5*25.6*19.2 | |
| FMC1252022 | T41-125X2.0X22.2MM | PC | 200 | 10.5/11.5 | 26.5*26.5*13.2 | |
| FMC1501622 | T41-150X1.6X22.2MM | PC | 200 | 12/13 | 32*32*11.7 | |
| FMC1502022 | T41-150X2.0X22.2MM | PC | 200 | 16.5/17.5 | 32*32*13.2 | |
| FMC1801622 | T41-180X1.6X22.2MM | PC | 200 | 20/21 | 37.5*19*22.7 | |
| FMC1802022 | T41-180X2.0X22.2MM | PC | 100 | 10.5/11 | 37.5*19*13.2 | |
| FMC2301622 | T41-230X1.6X22.2MM | PC | 50 | 8/9 | 24*24*11.7 | |
| FMC2302022 | T41-230X2.0X22.2MM | PC | 100 | 18.5/19.5 | 24*24*25.7 |
---Depressed Stainless Steel VA Metal Cutting Grindig Discs for Angle Grinders
| Depressed Cutting disc for inox 80m/s | DSC1003216 | T42-100X3.2X16MM | PC | 400 | 21/22 | 22X22X37.7 |
| DSC1153222 | T42-115X3.2X22.2MM | PC | 200 | 14/15 | 24.5*24.5*22.2 | |
| DSC1253222 | T42-125X3.2X22.2MM | PC | 200 | 16/17 | 26.5*26.5*22.2 | |
| DSC1503222 | T42-150X3.2X22.2MM | PC | 200 | 25/26 | 32*32*22.2 | |
| DSC1803222 | T42-180X3.2X22.2MM | PC | 100 | 18/19 | 37.5*19*23.7 | |
| DSC230322 | T42-230X3.2X22.2MM | PC | 50 | 14/15 | 24*24*23.7 | |
| DSC2503222 | T42-250X3.2X22.2MM | PC | 50 | 17.5/16.5 | 25*25*21 |
