Product Details:
|
| Abrasive: | Aluminium Oxide And Other Materials | Color: | Black |
|---|---|---|---|
| Hardness: | R | Max Working Speed: | 80 M/S |
| Grit Size: | 46#,60# | Iterm NO.: | FAC1001010 |
| Application: | Ferrous Metal And All Steel Cutting | Bonding Agent: | Resin |
| Arbor Size: | 3/8 In | Disc Type: | Flat Type |
| High Light: | 100mm reinforced cutting wheel,reinforced cutting wheel,4 Inch 100mm Thin Cutting Wheel |
||

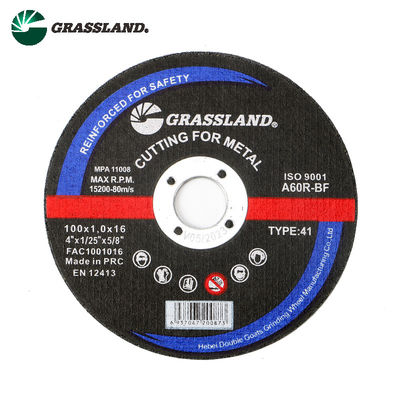

Grassland 4 inch 100 x 1 x 16mm reinforced fiberglass ultra thin metal Cutting Discs wheel for angle grinder discs
Description
Metal Cutting Discs are manufactured using with tough aluminum oxide, heat-treated aluminum oxide , monocrystalline fused alumina (SA) or silicon carbide abrasive grain and fibreglass reinforcing and resin bonded to provide both safety and optimum cutting performance. Thin Discs with a 1.2mm thickness permit fine cutting where necessary on stainless steel and high grade metals,extremely fast cutting with sharpness ,minimal vibration for more comfortable working,
They must never be used for grinding and must always be presented to the workpiece at an angle of 90º.
For use with a variety of machines, mini-grinders to stationary cutting-off machines.
Features
Outstanding balance between lifetime and cutting speed
Precise cutting thanks to reduced disc thickness (applies to discs with a thickness of less than 2 mm)
Complies with both the EN 12413 and OSA (Organization for the Safety of Abrasives) standards for enhanced safety
Applications
Cutting metals in the form of rebar, channels, angle profiles, pipes and sheet
They are commonly used in building, shipbuilding, metal, foundry, engineering, chemical and other industries as well as in smaller workshops.
| Cutting wheel information: | |||
| Product Name | 100 mm utting discs | Abrasive | Aluminum oxide |
| Hardness | R Grade | Net Standard | Reinforced fiberglass |
| Max working speed |
80 m/s
|
OEM Service | Acceptable |
| R.P.M | 15300 | Package |
Kraft Carton and Pallet
|
| Grit size | 46#,60# | HS Code | 68042210 |
|
Certificate
|
MPA EN12413,ISO9001
|
Loading Port | Tianjin or else |
| Description of goods | Item No | Specification | Unit | PCS/CTN | N.W./G.W.(KGS) | CARTON SIZE(CM) |
| Flat cutting disc for metal 80m/s | FAC0751095 | T41-75X1.0X9.5MM | PC | 800 | 9/10 | 34*17*17 |
| FAC0751695 | T41-75X1.6X9.5MM | PC | 800 | 14/15 | 34*20*17 | |
| FAC1001016 | T41-100X1.0X16MM | PC | 400 | 8.5/9.5 | 22*22*15.7 | |
| FAC1002016 | T42-100X2.0X16MM | PC | 400 | 15/16 | 27.7*22*22 | |
| FAC1151022 | T41-115X1.0X22.2MM | PC | 400 | 11/12 | 24.5*24.5*15.7 | |
| FAC1151622 | T41-115X1.6X22.2MM | PC | 400 | 14/15 | 24.5*24.5*19.2 | |
| FAC1152022 | T41-115X2.0X22.2MM | PC | 200 | 9.5/10.5 | 24.5*24.5*13.2 | |
| FAC1251022 | T41-125X1.0X22.2MM | PC | 400 | 13/14 | 26.5*25.6*15.7 | |
| FAC1251622 | T41-125X1.6X22.2MM | PC | 400 | 17/18 | 26.5*25.6*19.2 | |
| FAC1252022 | T41-125X2.0X22.2MM | PC | 200 | 10.5/11.5 | 26.5*26.5*13.2 | |
| FAC1501622 | T41-150X1.6X22.2MM | PC | 200 | 12/13 | 32*32*11.7 | |
| FAC1502022 | T41-150X2.0X22.2MM | PC | 200 | 16.5/17.5 | 32*32*13.2 | |
| FAC1801622 | T41-180X1.6X22.2MM | PC | 200 | 20/21 | 37.5*19*22.7 | |
| FAC1802022 | T41-180X2.0X22.2MM | PC | 100 | 10.5/11 | 37.5*19*13.2 | |
| FAC2301622 | T41-230X1.6X22.2MM | PC | 50 | 8/9 | 24*24*11.7 | |
| FAC2302022 | T41-230X2.0X22.2MM | PC | 100 | 18.5/19.5 | 24*24*25.7 |
